Ultra - Drive

Fixings Range

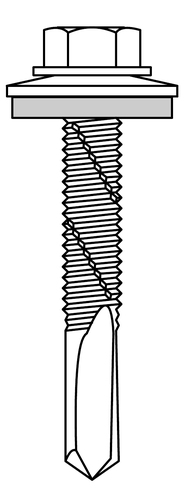

Ultradrive

The latest forged point technology now produces the most comprehensive range of fasteners for hot rolled rails and purlins. Designed to eliminate the inherent problems of milled point fasteners, skidding and slow drill speed times. The performance of ultradrive is beyond comparison with any other product available.


The CFT 'ultra drive' range of quality engineered fasteners are precision engineered on the latest 'forged point' die machinery giving accurate none skid rapid drilling capacity producing the optimum size pilot hole to give maximum thread engagement producing one of the fastest and most secure fastening systems available.

Applications

For fixing profile metal, Cladding single skin or insulation to cold rolled, Rails and fixing to hot rolled steel 5.0mm to 12.5 mm.


Head Styles

Hex 5/16" AF.


Benefits

Fast and effective fixing to thick steel giving maximum pullout and fast drill speed.


Specifications

Manufactured from carbon steel, heat treated and Zinc plated to 12 microns. Also available with Bi Hex internal nylon head (see page 10). For external and corrosive conditions , Stafix 304 series stainless steel.



Code

Diameter (mm)

Length (mm)

Fully Threaded

ASF32

5.5

22

Yes

ASF47

5.5

32

Yes

ASF24

5.5

38

Yes

ASF27

5.5

51

Yes

ASF154

5.5

67

Yes

ASF33

5.5

76

No

ASF34

5.5

100

No

ASF35

5.5

115

No

CFT36

5.5

130

No

CFT37

5.5

150

No

Fasteners shown are available pre-assembled

Code

Dia

EPDM Thickness

Application

G12

12mm

2.1

Isolator

G16

16mm

2.1

Side wall

G19

19mm

3.0

Roof

G29

29mm

3.0

Roof Lights
